STM32+AD7606 8通道16位数据采集卡 PCB+原理图+源码

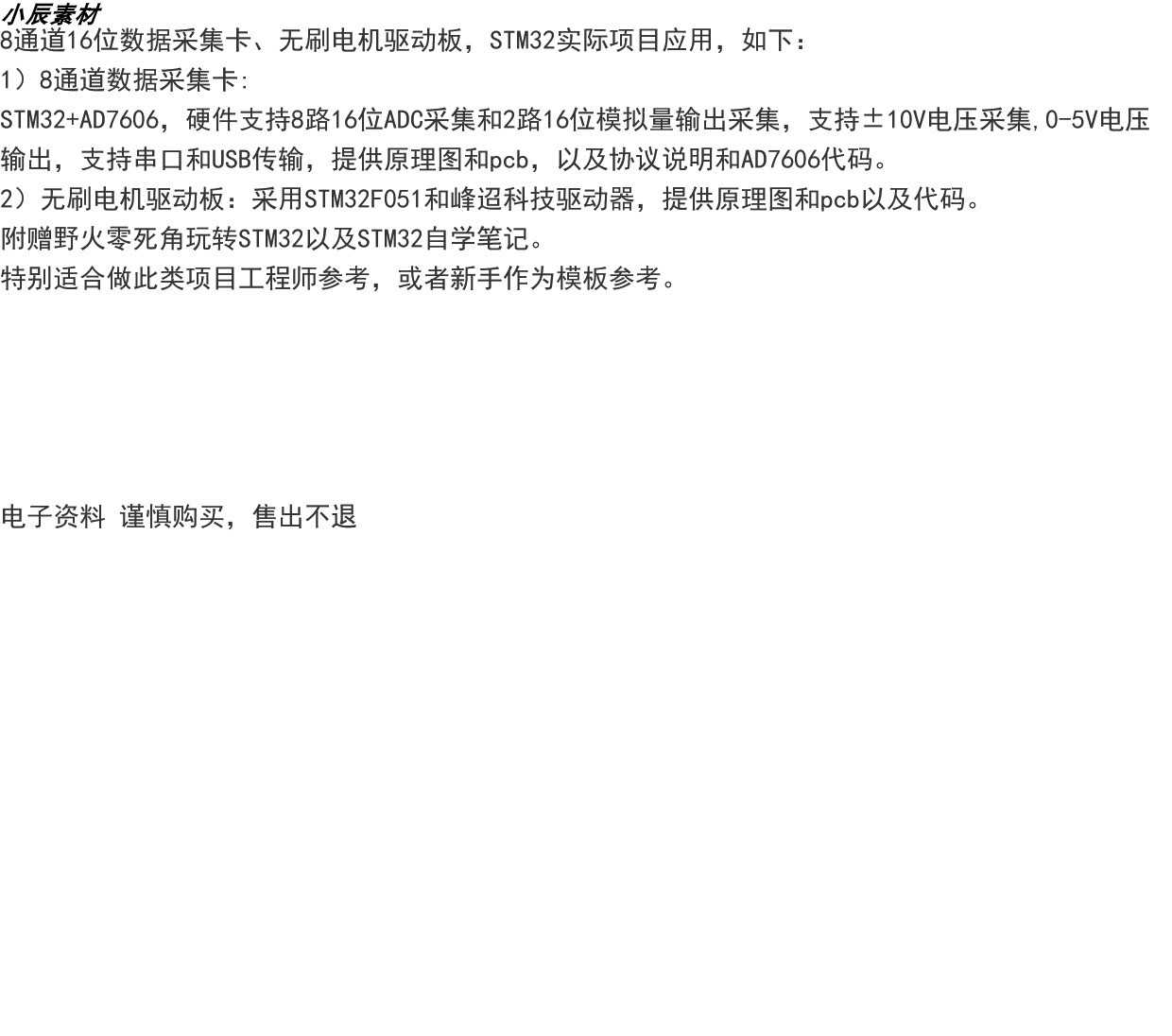

8通道16位数据采集卡、无刷电机驱动板，STM32实际项目应用，如下：

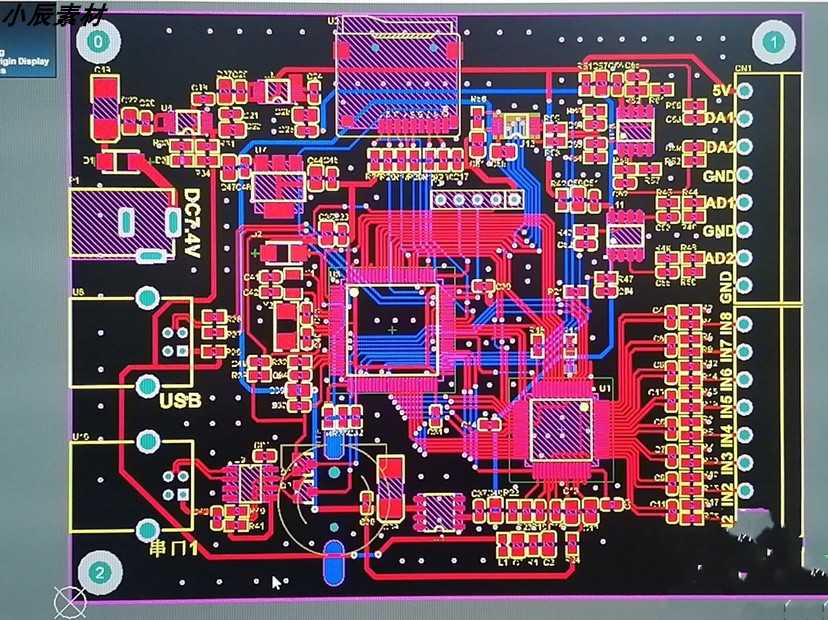

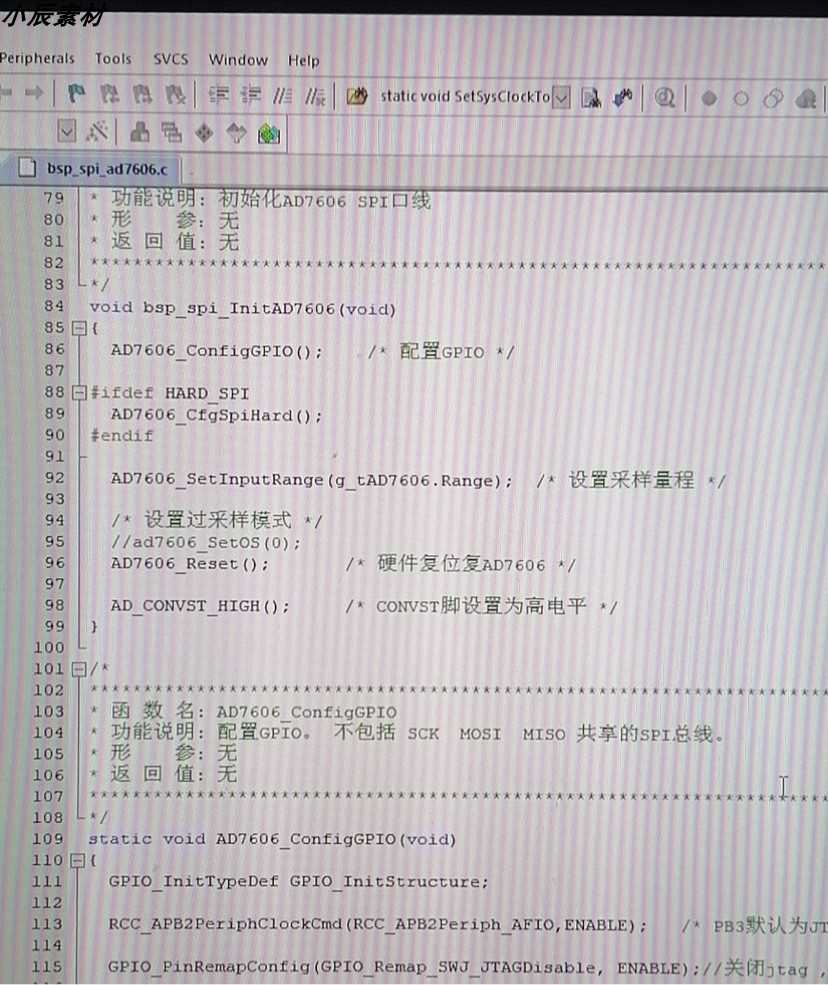

1）8通道数据采集卡：STM32+AD7606，硬件支持8路16位ADC采集和2路16位模拟输出采集，支持±10V电压采集，0-5V电压输出，支持串口和USB传输，提供原理图和pcb，以及协议说明和AD7606代码。

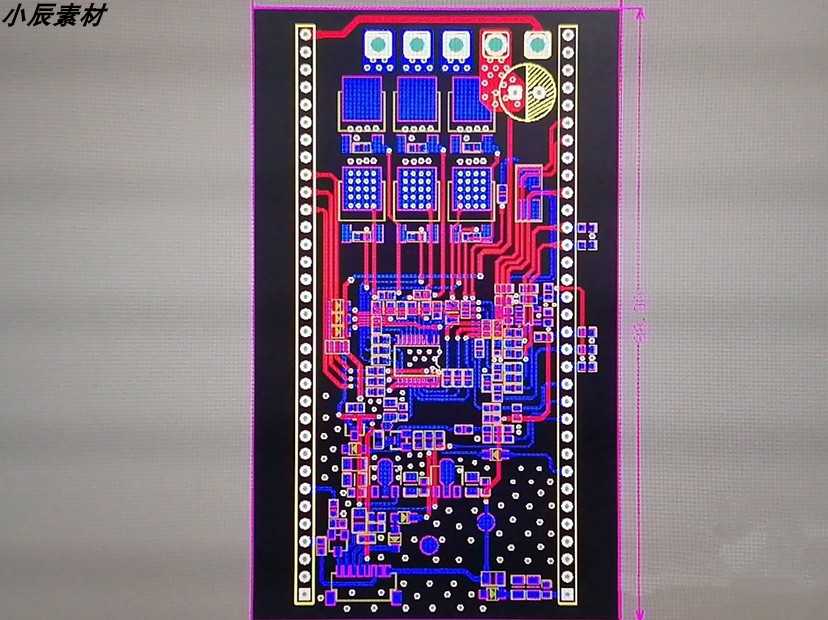

2）无刷电机驱动板：采用STM32F051和峰值科技驱动器，提供原理图和pcb以及代码。附赠野火死神之魂转STM32以及STM32自学笔记。

特别适合做此类项目工程师参考，或者新手作为模板参考。

电子资料 谨慎购买，售出不退
