three.js – Environment Map

• Environment Map

  • as a background
  • as reflection
  • as lighting

• Set up

<script setup>
  import * as THREE from  three
  import {OrbitControls} from  three/addons/controls/OrbitControls.js
  import GUI from  lil-gui

  /**
   * scene
  */
  const scene = new THREE.Scene()

  /**
   * torus knot
  */
  const torusKnot = new THREE.Mesh(
    new THREE.TorusKnotGeometry(1, 0.4, 100, 16),
    new THREE.MeshBasicMaterial()
  )
  torusKnot.position.y = 4
  scene.add(torusKnot)

  /**
   * camera
  */
  const camera = new THREE.PerspectiveCamera(
    75,
    window.innerWidth / window.innerHeight,
    0.1,
    100)
  camera.position.set(4, 5, 4)
  scene.add(camera)

  /**
   * renderer
  */
  const renderer = new THREE.WebGLRenderer({})
  renderer.setSize(window.innerWidth, window.innerHeight)
  renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2))
  document.body.appendChild(renderer.domElement)

  window.addEventListener( resize , () => {
    camera.aspect = window.innerWidth / window.innerHeight
    camera.updateProjectionMatrix()

    renderer.setSize(window.innerWidth, window.innerHeight)
    renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2))
  })

  /**
   * control
  */
  const controls = new OrbitControls(camera, renderer.domElement)
  controls.target.y = 3.5
  controls.enableDamping = true

  /**
   * tick
  */
  const tick = () => {
    controls.update()
    renderer.render(scene, camera)
    requestAnimationFrame(tick)
  }
  tick()

  /**
   * gui
  */
  const gui = new GUI()
</script>

• Model

  • 添加model后向下移动camera就能看见了

  import { GLTFLoader } from  three/addons/loaders/GLTFLoader.js ;

  /**
   * loaders
  */
  const gltfLoader = new GLTFLoader()
  ...
  ...
  /**
   * models
  */
  gltfLoader.load(
     ../public/models/environment-map/models/FlightHelmet/glTF/FlightHelmet.gltf ,
    (gltf) => {
      // console.log((gltf));
      scene.add(gltf.scene)
    }
  )

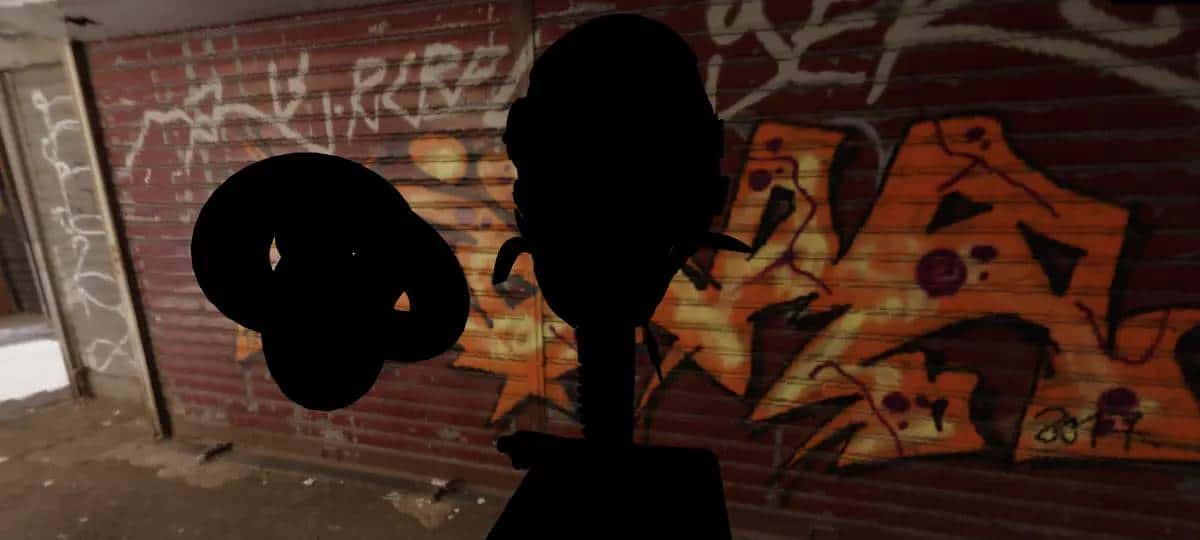

  • the model is too small and it s black, because its materials are MeshStandardMaterial and those need light
  • cube texture environment map, load the textures in this order: positive x, negative x, positive y, negative y, positive z, negative z

  /**
   * loaders
  */
  ...
  const cubeTextureLoader = new THREE.CubeTextureLoader()

  /**
   * environment map
  */
  // LDR cube texture
  const environmentMap = cubeTextureLoader.load([
     ../public/models/environment-map/environmentMaps/0/px.png ,
     ../public/models/environment-map/environmentMaps/0/nx.png ,
     ../public/models/environment-map/environmentMaps/0/py.png ,
     ../public/models/environment-map/environmentMaps/0/ny.png ,
     ../public/models/environment-map/environmentMaps/0/pz.png ,
     ../public/models/environment-map/environmentMaps/0/nz.png
  ])

  scene.background = environmentMap


  • move the torus knot to the side and change its material to MeshStandardMaterial

  /**
   * torus knot
  */
  const torusKnot = new THREE.Mesh(
    new THREE.TorusKnotGeometry(1, 0.4, 100, 16),
    new THREE.MeshStandardMaterial({
      roughness: 0.3,
      metalness: 1,
      color: 0xaaaaaa
    })  )
  torusKnot.position.x = -4
  ...

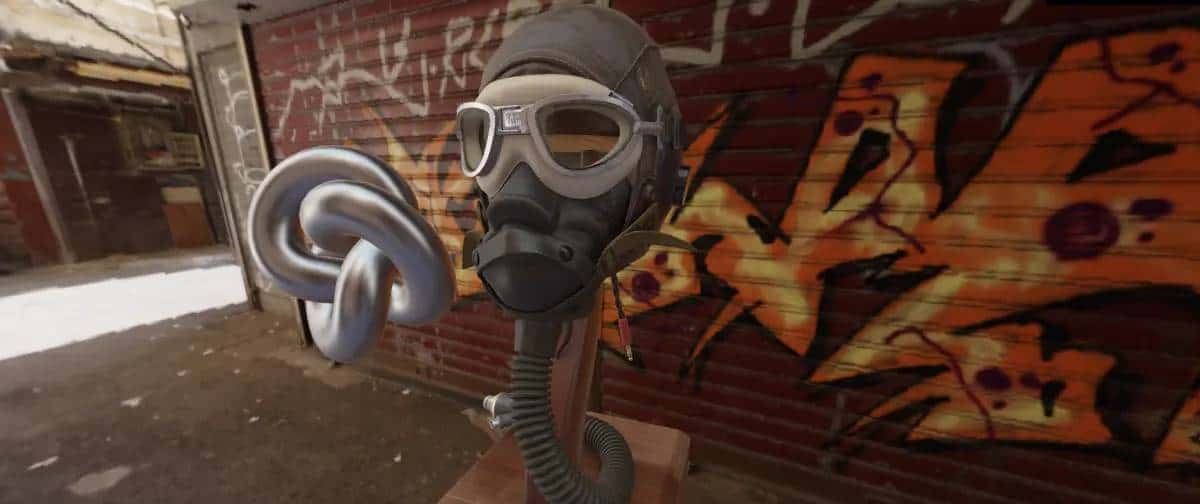

  • use the environment map to light up the model, 也可以在单个model的material上设置envMap属性，但我们import的model层级结构比较复杂，不方便遍历添加，所以我们使用以下方法

  /**
   * environment map
  */
  // LDR cube texture
  ...

  scene.environment = environmentMap // to the hold scene
  scene.background = environmentMap




  • control the environment map s intensity, it has to be done on each material, we re going to touch the hole scene using traverse(), this method is available on object3D, we ll do it in a separated function and call it once is loaded
  • we only want to apply the environment map to the Meshes that have a MeshStandardMaterial

  /**
   * update all materials
  */
  const updateAllMaterials = () => {
    scene.traverse(child => {
      // console.log(child) // mesh, group, perspectiveCamera...

      // child instanceof THREE.Mesh && child.material instanceof THREE.MeshStandardMaterial
      if(child.isMesh && child.material.isMeshStandardMaterial) {
        // console.log(child);
        child.material.envMapIntensity = 3  // 增强环境贴图的反射强度
      }
    })
  }


  /**
   * models
  */
  gltfLoader.load(
     ../public/models/environment-map/models/FlightHelmet/glTF/FlightHelmet.gltf ,
    (gltf) => {
      ...
      updateAllMaterials()
    }
  )




  • control the envMapIntensity by using the Dat.gui

  /**
   * gui
  */
  const gui = new GUI()
  const global = {
    envMapIntensity: 1
  }
  gui
    .add(global,  envMapIntensity )
    .min(0)
    .max(10)
    .step(0.001)
    .onChange(updateAllMaterials)


  /**
   * update all materials
  */
  const updateAllMaterials = () => {
    scene.traverse(child => {
        ...
        child.material.envMapIntensity = global.envMapIntensity // 调整环境贴图的反射强度
      }
    })
  }


• Background blurriness and intensity 模糊度、强度

  scene.backgroundBlurriness = 0
  scene.backgroundIntensity = 1

  gui
    .add(scene,  backgroundBlurriness )
    .min(0)
    .max(1)
    .step(0.001)
  gui
    .add(scene,  backgroundIntensity )
    .min(0)
    .max(10)
    .step(0.001)

• HDRI – Equirectangular Environment Map 等距矩形环境贴图

  • HDR Files: File extension is .hdr, high dynamic range 高动态范围
  • HDRI: color values stored have a much higher range than a traditional image
  • Equirectangular: only one picture containing kind of a 360° view of the surrounding
  • comment the environment map(keep the backgroundBlurriness and backgroundIntensity)

  /**
   * environment map
  */
  // LDR cube texture
  // const environmentMap = cubeTextureLoader.load([
  //    ../public/models/environment-map/environmentMaps/0/px.png ,
  //    ../public/models/environment-map/environmentMaps/0/nx.png ,
  //    ../public/models/environment-map/environmentMaps/0/py.png ,
  //    ../public/models/environment-map/environmentMaps/0/ny.png ,
  //    ../public/models/environment-map/environmentMaps/0/pz.png ,
  //    ../public/models/environment-map/environmentMaps/0/nz.png
  // ])

  // scene.environment = environmentMap // to the hold scene
  // scene.background = environmentMap

  scene.backgroundBlurriness = 0
  scene.backgroundIntensity = 1


  • load and use the HDRI, we need to use the RGBELoader, RGBE stands for Red Blue Green Exponent, the exponent means stores the brightness, 使用 RGBELoader 加载的背景看起来要更亮，由于存储在文件中的值更多、范围更大

  import {RGBELoader} from  three/addons/loaders/RGBELoader.js

  /**
   * loaders
  */
  ...
  const rgbeLoader = new RGBELoader()


  /**
   * environment map
  */
  ...
  ...
  // HDR (RGBE) equirectangular
  rgbeLoader.load( ../public/models/environment-map/environmentMaps/0/2k.hdr , (environmentMap) => {
    environmentMap.mapping = THREE.EquirectangularReflectionMapping

    scene.environment = environmentMap
    scene.background = environmentMap
  })

  scene.backgroundBlurriness = 0
  scene.backgroundIntensity = 1

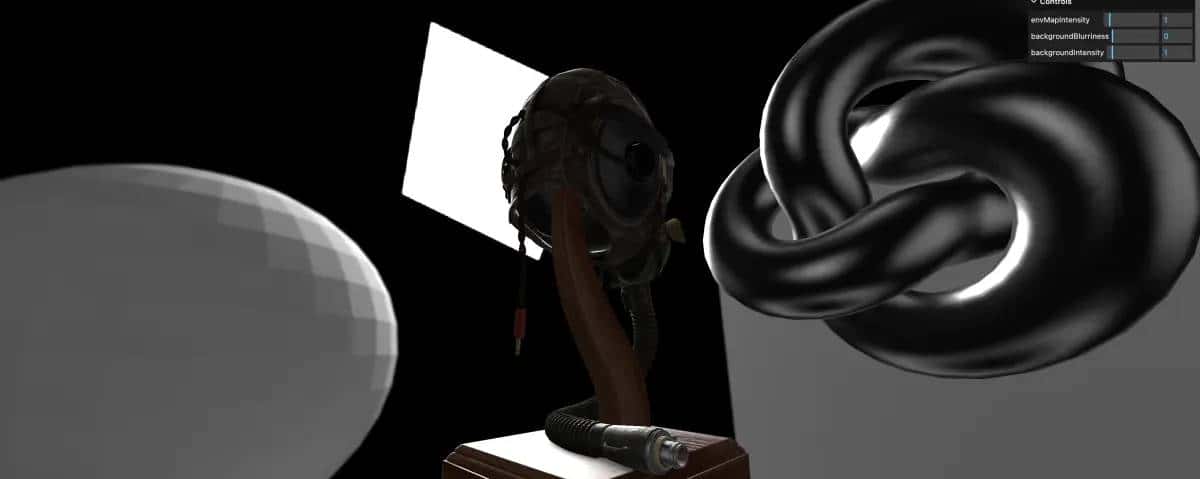

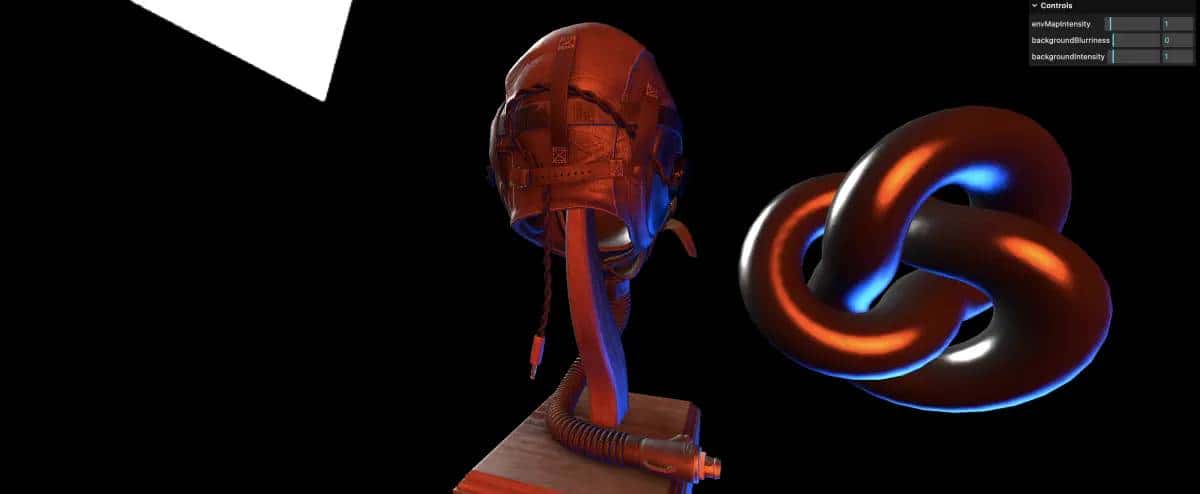

  • 这里我们展示一些通过blender创建的不同类型的HDR背景图所呈现的效果

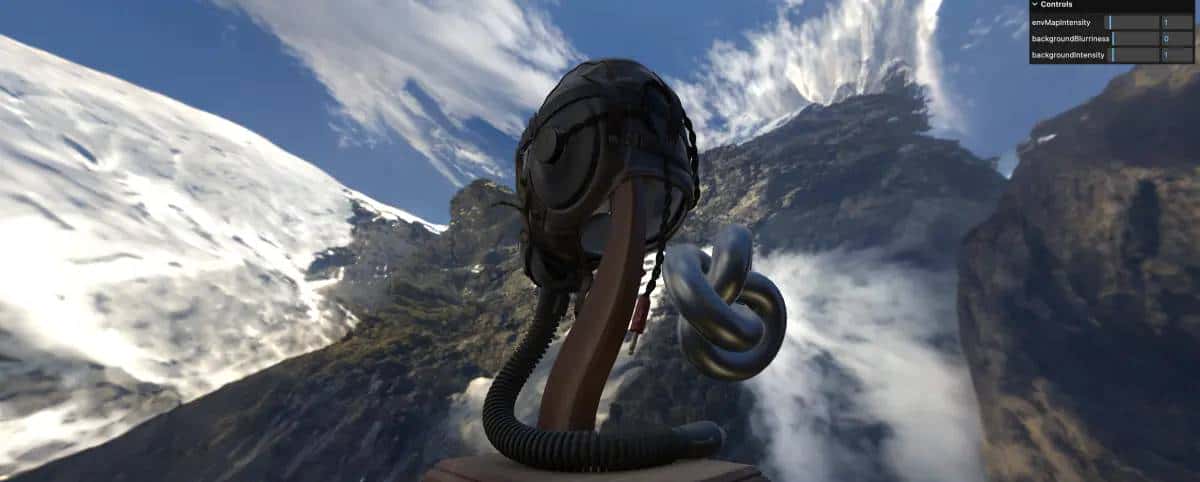

• AI generated environment using NVIDIA Canvas


  • the software is in beta and only works on windows
  • the extension is .exr, our exported file is also an HDR, but EXR can also store layer
  • import the EXRLoader

  ...
  import { EXRLoader } from  three/addons/loaders/EXRLoader.js ;

  /**
   * loaders
  */
  ...
  const exrLoader = new EXRLoader()

  // HDR (RGBE) equirectangular
  // rgbeLoader.load( ../public/environment-map/environmentMaps/blender-2k-1.hdr , environmentMap => {
  //   environmentMap.mapping = THREE.EquirectangularReflectionMapping

  //   scene.environment = environmentMap
  //   scene.background = environmentMap
  // })

  // HDR (EXR) equirectangular
  exrLoader.load( ../public/environment-map/environmentMaps/nvidia-canvas-4k.exr , environmentMap => {
    environmentMap.mapping = THREE.EquirectangularReflectionMapping

    scene.environment = environmentMap
    scene.background = environmentMap
  })

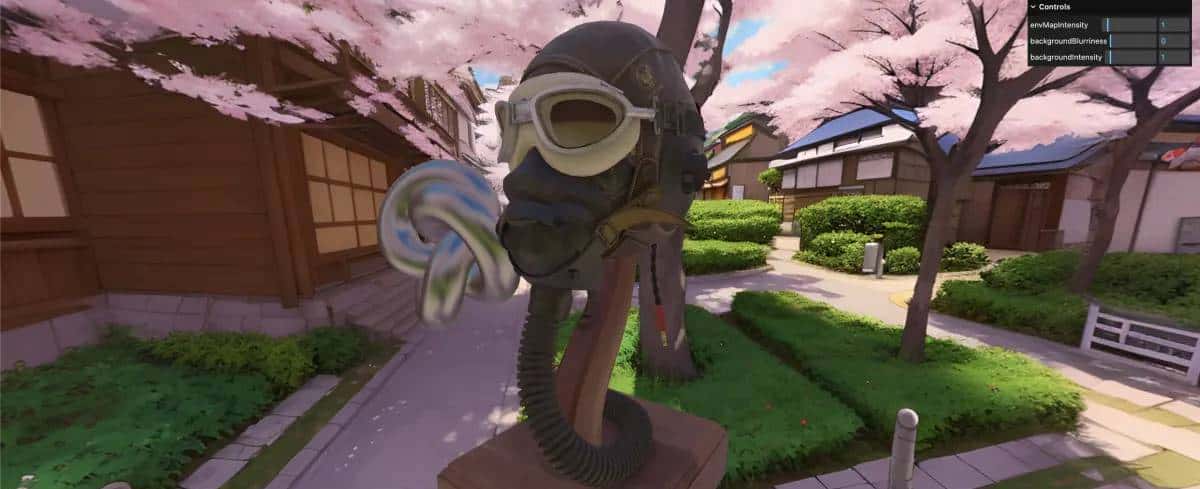

• AI generated environment map using BlockadeLabs


  /**
   * loaders
  */
  ...
  const textureLoader = new THREE.TextureLoader()

  // HDR (RGBE) equirectangular
  // rgbeLoader.load( ../public/environment-map/environmentMaps/blender-2k-1.hdr , environmentMap => {
  //   environmentMap.mapping = THREE.EquirectangularReflectionMapping

  //   scene.environment = environmentMap
  //   scene.background = environmentMap
  // })

  // HDR (EXR) equirectangular
  // exrLoader.load( ../public/environment-map/environmentMaps/nvidia-canvas-4k.exr , environmentMap => {
  //   environmentMap.mapping = THREE.EquirectangularReflectionMapping

  //   scene.environment = environmentMap
  //   scene.background = environmentMap
  // })

  // scene.backgroundBlurriness = 0
  // scene.backgroundIntensity = 1

  // LDR equirectangular
  const environmentMap = textureLoader.load( ../public/environment-map/environmentMaps/blockadesLabsSkybox/anime_art_style_japan_streets_with_cherry_blossom_.jpg )
  environmentMap.mapping = THREE.EquirectangularReflectionMapping
  environmentMap.colorSpace = THREE.SRGBColorSpace
  scene.environment = environmentMap
  scene.background = environmentMap

• Ground Projected Environment Map

  • when using the environment map as background, the objects look like are flying
  • to use on of the HDR environment maps, only as the environment

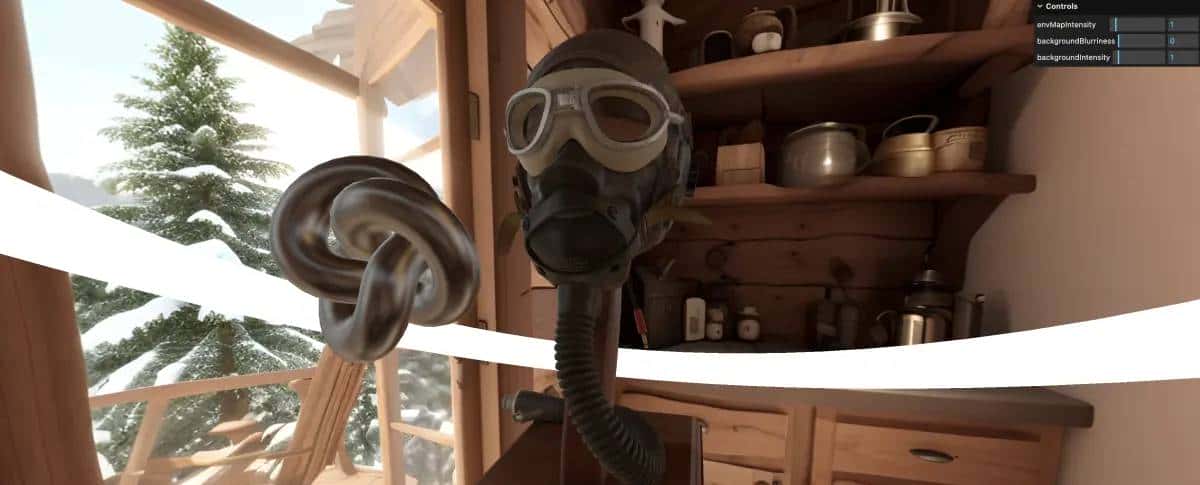

• RealTime EnvironmentMap

  /**
   * real time environment map
  */
  const environmentMap = textureLoader.load( ../public/environment-map/environmentMaps/blockadesLabsSkybox/interior_views_cozy_wood_cabin_with_cauldron_and_p.jpg )
  environmentMap.mapping = THREE.EquirectangularReflectionMapping
  environmentMap.colorSpace = THREE.SRGBColorSpace

  scene.background = environmentMap

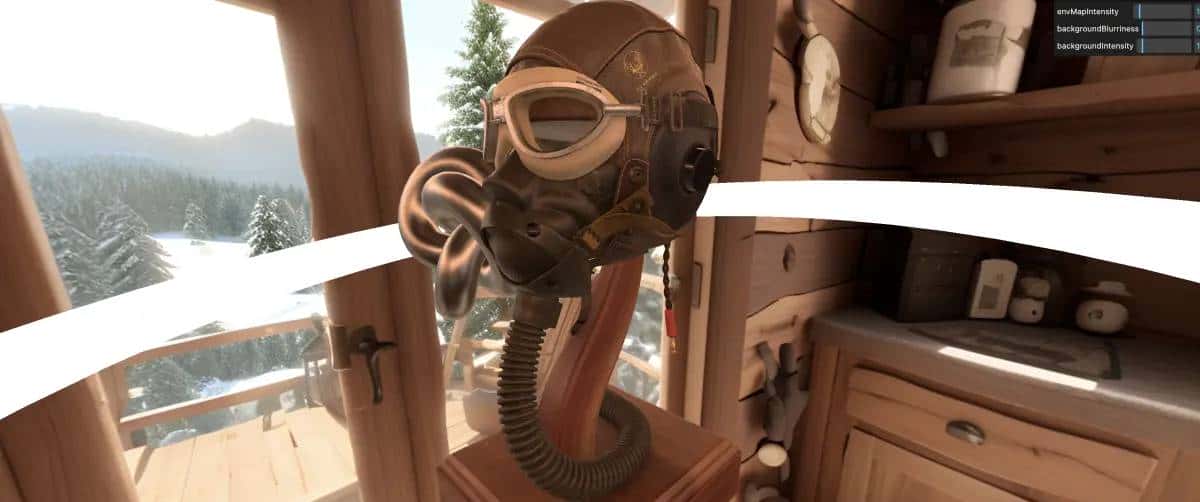

  • we re going to create a torus or a donut surrounding the scene and try to make the donut illuminate and reflect on the surface of our objects

  /**
   * holy donut
  */
  const holyDonut = new THREE.Mesh(
    new THREE.TorusGeometry(8, 0.5),
    new THREE.MeshBasicMaterial({color:  white })
  )
  holyDonut.position.y = 3.5
  scene.add(holyDonut)


  • we re going to render the scene inside our own environment map texture and it s going to be a cube texture
  • 创建立方体纹理：we need to use WebGLCubeRenderTarget, we need to create textures on each frame

  /**
   * cube render target
  */
  const cubeRenderTarget = new THREE.WebGLCubeRenderTarget(
    256,  // 分辨率
    {
      type: THREE.HalfFloatType
    }
  )
  scene.environment = cubeRenderTarget.texture


  • we need to use CubeCamera, because we need to render 6 texture for each face

  // cube camera
  const cubeCamera = new THREE.CubeCamera(0.1, 100, cubeRenderTarget) // near, far


  /**
   * tick
  */
  const clock = new THREE.Clock()
  const tick = () => {
    const elapsedTime = clock.getElapsedTime()

    if(holyDonut) {
      holyDonut.rotation.x = Math.sin(elapsedTime) * 2
      cubeCamera.update(renderer, scene)
    }

    controls.update()
    renderer.render(scene, camera)
    requestAnimationFrame(tick)
  }
  tick()




  • we can make the cube color go beyond the 0 to 1 range

  /**
   * holy donut
  */
  const holyDonut = new THREE.Mesh(
    ...
    new THREE.MeshBasicMaterial({color: new THREE.Color(10, 4, 2)})
  )
  ...
