简介

Camunda is a Java-based framework supporting BPMN for workflow and process automation, CMMN for Case Management and DMN for Business Decision Management.

重大致念

• BPMN – Business Process Model and Notation (BPMN) is a standard for Workflow and Process Automation. Camunda supports the 2.0 version of BPMN.
• https://docs.camunda.org/get-started/bpmn20/
• CMMN – Case Management Model and Notation (CMMN) is a standard for Case Management. Camunda supports the 1.1 version of CMMN.
• https://docs.camunda.org/get-started/cmmn11/
• DMN – Decision Model and Notation (DMN) is a standard for Business Decision Management. Camunda supports the 1.1 version of DMN.
• https://docs.camunda.org/get-started/dmn11/

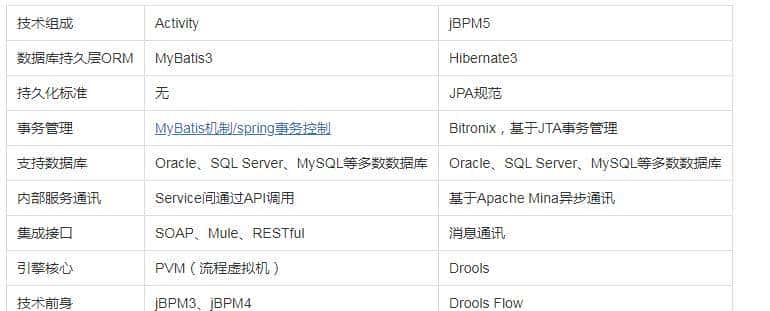

工作流对比

关键人物介绍

Tom Baeyens – 创建了jbpm。离开JBoss后，jBPM的下一个版本jBPM5完全放弃了jBPM4的基础代码，基于Drools Flow重头来过，目前官网已经推出了jBPM6的beta版本；Tom Baeyens加入Alfresco后很快推出了新的基于jBPM4的开源工作流系统Activiti。2012年末，Alfresco的Activity BPM 小组正经历一系列的转变：Tom Baeyens将不再领导Activity工程，决定离开Alfresco。camunda是Activity最大的贡献者之一（除Alfresco以外），同时也是它一个主要的执行咨询合作伙伴。camunda表明Activity可能太拘束于Alfresco对以文档为中心的工作流的需求，而忽视了Activity起步时的更为普遍的BPM平台，故而从Activiti分支建立了camunda BPM项目。

框架总览

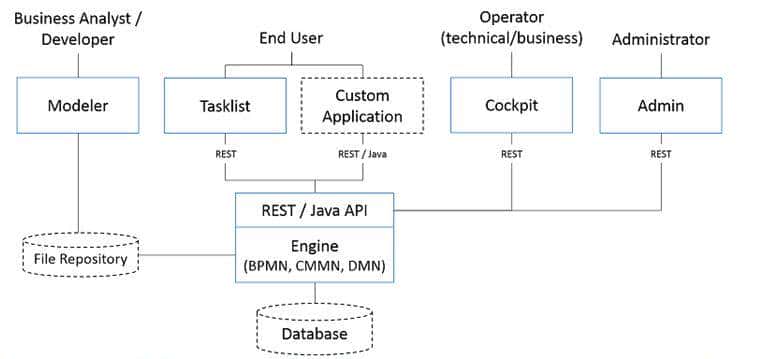

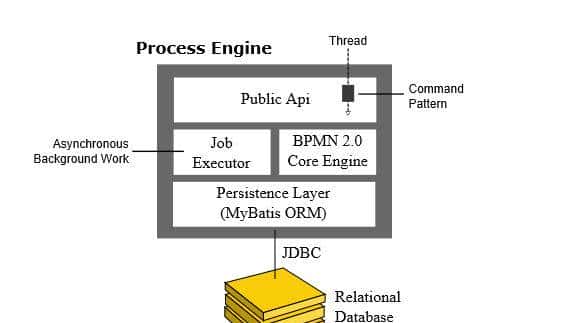

流程引擎架构

框架示例

Camunda Tomcat 集成容器下载:

• https://camunda.org/download/

解压tomcat，切换到目录serverapache-tomcat-8.0.24webapps，包含以下子目录：

•Camunda — 管理功能模块，包含admin、cockpit、tasklist

•camunda-invoice – 发票审批demo

•engine-rest – 工作流程引擎Rest API模块

•Examples – 其他demo例子

数据库创建:

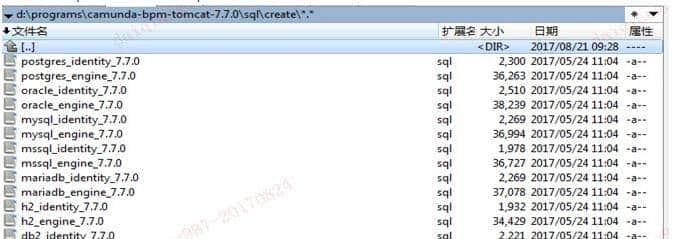

切换目录sqlcreate选择对应sql脚本执行

tomcat配置修改:

切换到serverapache-tomcat-8.0.24conf目录

bpm-platform.xml

camunda自有配置维护文件。

可根据具体应用场景修改以下全局配置属性

<properties>

<property>full</property>

<property>true</property>

<property>true</property>

<property>true</property>

<property>true</property>

</properties>

tomcat配置修改:

切换到serverapache-tomcat-8.0.24conf目录

server.xml

tomcat容器管理配置维护文件。

<Resource

auth=”Container”

type=”javax.sql.DataSource”

factory=”org.apache.tomcat.jdbc.pool.DataSourceFactory”

uniqueResourceName=”process-engine”

driverClassName=”oracle.jdbc.driver.OracleDriver”

url=”jdbc:oracle:thin:@127.0.0.1:1521:camunda”

defaultTransactionIsolation=”READ_COMMITTED”

username=”camunda”

password=”123456″

maxActive=”20″

minIdle=”5″

removeAbandoned=”true”

removeAbandonedTimeout=”60″

testOnBorrow=”true”

validationQuery=”select count(1) from dual”

logAbandoned=”true”/>

应用集成

添加依赖包

compile 'org.camunda.bpm:camunda-engine:7.7.0'

compile 'org.camunda.bpm:camunda-engine-spring:7.7.0'

添加spring bean

<bean id="camundaTransactionManager">
 <property ref="dataSource" />
</bean>
<bean id="processEngineConfiguration">
 <property value="engine" />
 <property value="HISTORY_LEVEL_FULL"/>
 <property value="true"/>
 <property ref="dataSource" />
 <property ref="camundaTransactionManager" />
 <property value="true" />
 <property value="true" />
 <property value="classpath:*.bpmn" />
</bean>
<bean id="processEngine">
 <property ref="processEngineConfiguration" />
</bean>
<bean id="repositoryService" factory-bean="processEngine" factory-method="getRepositoryService" />
<bean id="runtimeService" factory-bean="processEngine" factory-method="getRuntimeService" />
<bean id="taskService" factory-bean="processEngine" factory-method="getTaskService" />
<bean id="historyService" factory-bean="processEngine" factory-method="getHistoryService" />
<bean id="managementService" factory-bean="processEngine" factory-method="getManagementService" />

modeler流程文件

将modeler设计流程模板放到应用工程resources目录或者子目录下。

用户集成方式

Camunda自有user体系

优：无需改动

缺：灵活性差，运维成本高

使用ldap用户集成

优：可和支持ldap功能对接

缺：依赖ldap功能限制

通过插件扩展用户体系

优：通过扩展能实现定制化需求

缺：对camunda熟悉，开发成本高

只使用workflow节点流转功能

优：应用灵活，可满足不同业务需求

缺：camunda部分丰富功能无法使用，可能重新开发框架存在组件

Job Executor

文档地址
:https://docs.camunda.org/manual/7.7/user-guide/process-engine/the-job-executor/

Job 激活配置:<property value=”true” />

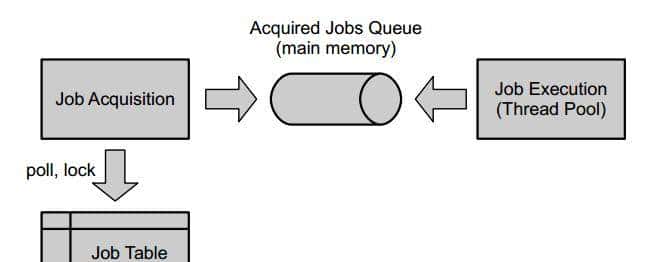

job 工作架构：

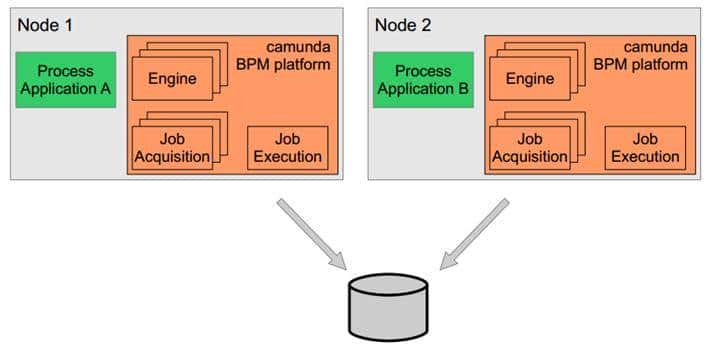

同构集群部署：

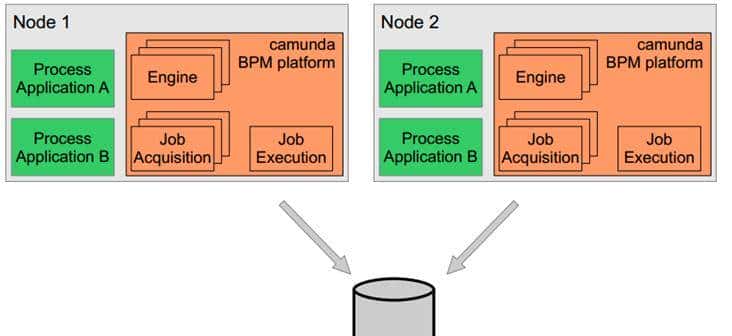

异构集群部署：

支持异构集群部署，部署node设置
jobExecutorDeploymentAware=true

<property>true</property>

附录

• engine-rest api
• https://docs.camunda.org/manual/7.7/reference/rest/
• Web modeler
• http://bpmn.io/toolkit/bpmn-js/walkthrough/
• camunda get-started
• https://docs.camunda.org/get-started/
• Camunda Guid
• https://docs.camunda.org/manual/7.7/introduction/
• LDAP Identity Service
• https://docs.camunda.org/manual/7.7/user-guide/process-engine/identity-service/
